Capinera Evolution

Features

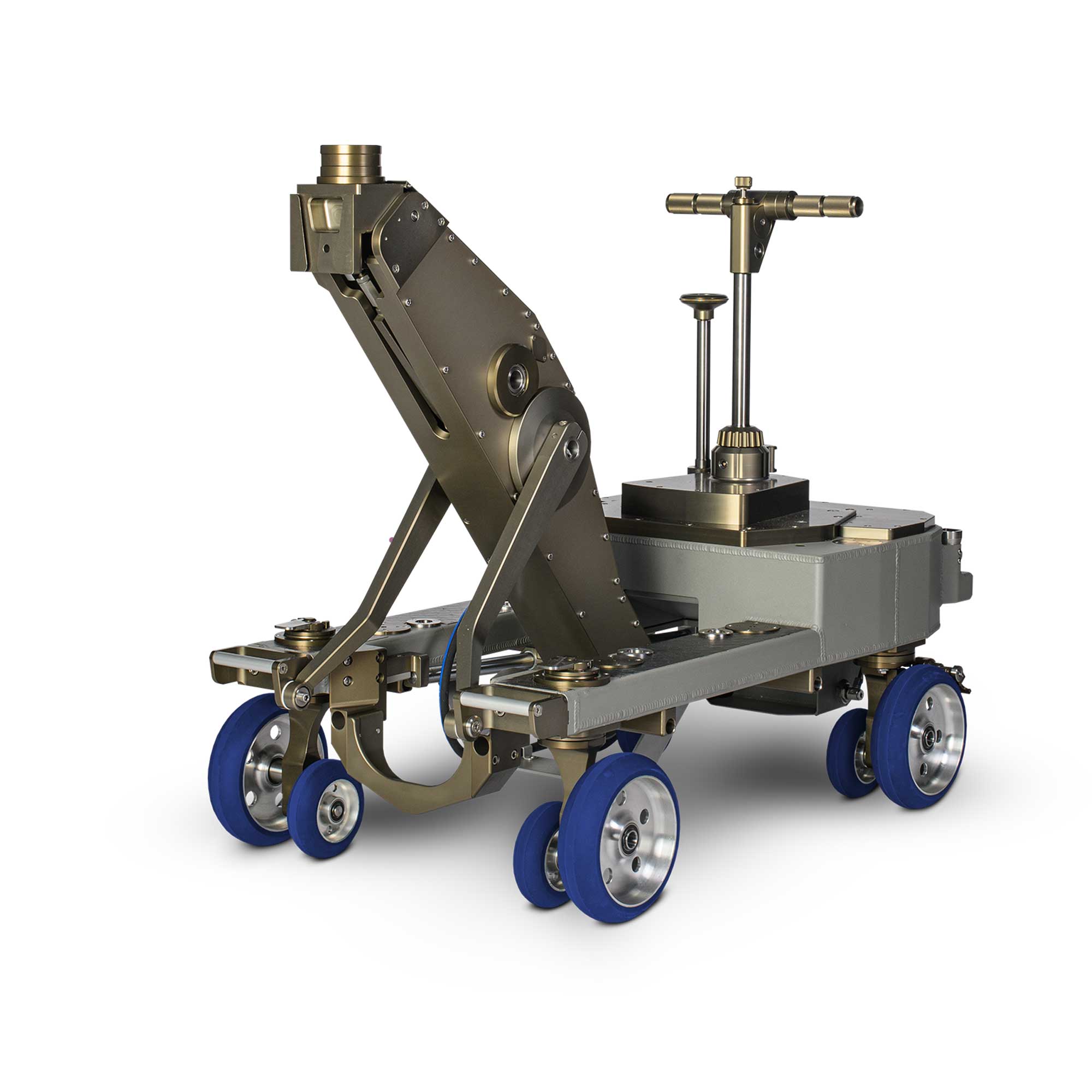

We call Capinera Evolution our lightweight dolly and not by chance. With an incredibly small weight of 120kg (264 lbs), this camera dolly is the ideal choice in case of smaller crews, smaller machines, smaller cameras and zooms.

Designing this model, we focused on few key features to allow Directors of Photography to achieve their goals with safety, freedom and a very small footprint.
The limited weight does not impact on stability and arm movement, making the dolly much easier to carry in as many different locations as your production requests.

Specifications

Accessories

Specifications

Length (A): 49.6 in – 126 cm
Width (B): 26.7 in – 68 cm
Min Height (C): 12 in – 31 cm
Max Height (D): 42.9 in – 109 cm
Arm Travel (E): 30.7 in – 78 cm
Crab : ✓
Conventional : ✓
Battery powered : ✓

Usable track gauge: 24.4 in – 62 cm
Lifting Capacity: 131 lbs – 60 kg
Precharge pressure: 90 bar
Max. Working P: 180 bar
Max. Arm lifts: 4
Weight: 264 lbs – 120 kg
Power Supply: 28V / 110V / 220V

STEERING MODES AND SPECIAL FEATURES

conventional

Rear wheels rotate 360°, while the front wheels stay locked in place.

crab

Front and rear wheels rotate 360° in unison.

This dolly is equipped with a combined skate/rigid wheel system which brings an indisputable advantage compared to other ones known nowadays. It allows an incredibly stable and smooth movement both on track and on its joints, and can be quickly moved from the ground to the track by simply adding the skate wheels, saving precious time on set.

Capinera Evolution dolly has an extremely efficient Power Supply system. Switching to 110V or 220V or 28V-powered battery makes the charging procedure easy and convenient.
